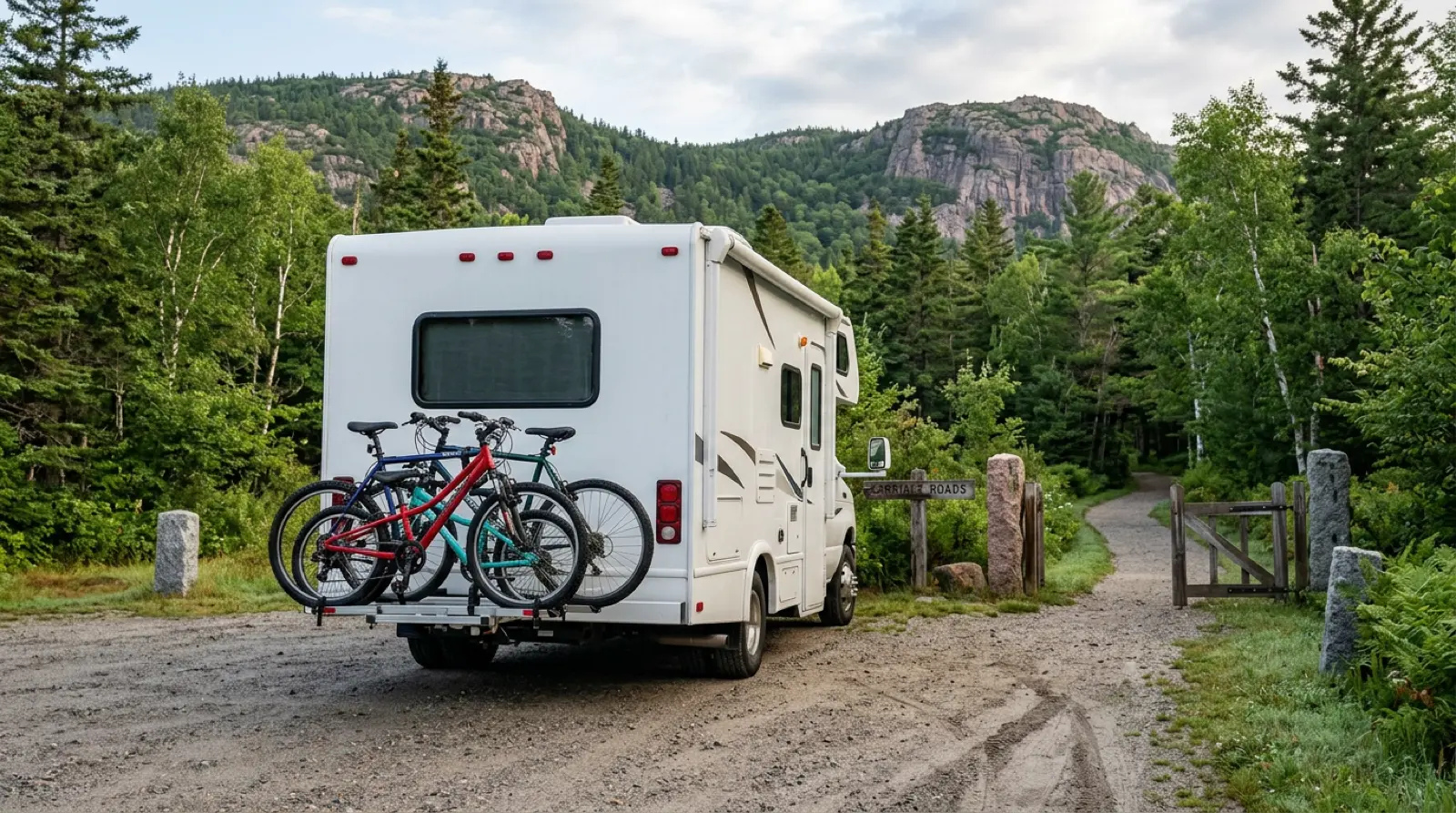

RV rental with a 4-bike rack — mixed adult and kid wheel sizes

Families with kids who already ride bikes face a specific RV rental challenge: how to bring four bikes of mixed adult and kid wheel size on a single rental rig. The keyword "rv rental with bike rack 4 bikes adult and kids" is searched by families who have already tested their existing rack on a previous trip and discovered the standard 2-bike rental rack does not solve their problem. This page is the honest filter for the rack-and-rig combination that does.

Why mixed-wheel-size complicates the rack choice. Hanging-arm style bike racks (the cheaper and most common rental-included style) require the bike to have a straight horizontal top tube to hang from the arm — they work fine for adult bikes with traditional geometry but fail or fit poorly on kid bikes with sloped top tubes, on women-specific bikes with step-through frames, and on most full-suspension mountain bikes. Tray-style racks (where the bike sits in a tray with the wheels held in place by a clamp or strap) accept any frame geometry and any wheel size from kid 16-inch up to adult 29-inch. For a mixed adult-and-kid family the tray-style rack is the only practical answer; the hanging-arm rack is a non-starter.

Specific 4-bike tray-style racks worth knowing. Thule T2 Pro XTR with the 2-bike add-on accessory extends the base 2-bike T2 Pro to 4 bikes, rated 60 lb per bike (sufficient for adult e-bikes). Kuat NV 2.0 with the add-on extends from 2 to 4 bikes with similar weight capacity and arguably the best bike-on, bike-off ergonomics. 1Up USA Heavy Duty Double with extensions is the most expensive option but is over-built for full-time-RV abuse and is reliably highly rated by long-term users. All three accept 20-inch kid wheels (sometimes with the optional kid-wheel adapter strap for the 16-inch and smaller wheels). Confirm the specific rack model on the rental listing — 'has a bike rack' is too vague.

Hitch class and tongue-weight math. Most Class C motorhome rear hitches are rated Class III or Class IV. Class III tongue-weight capacity is 350-500 lb depending on the chassis, Class IV is 500-600 lb. A 4-bike tray-style rack itself weighs 50-70 lb empty. Four bikes (2 adult at 30 lb each, 2 kid at 22 lb each) add roughly 104 lb. The total payload on the hitch is about 175 lb — well within Class III capacity for the bikes alone. The real constraint is whether the rig is already towing another vehicle: most Class C rigs allow either a 4-bike rack OR a tow-behind vehicle at the rear hitch but not both at the same hitch position. Class A rigs sometimes have a second hitch receiver for a separate rack while still towing; confirm the rig's specific configuration before booking.

Which rig classes realistically work. Class C in the 28-32 foot range is the most common fit and the purpose-designed answer. Class A — rear hitch capacity varies by model; many high-end Class A rigs have a Class IV hitch sufficient for a 4-bike load. Travel trailers — a bike rack on the rear of the trailer is possible but rare (most setups put the bike rack on the front of the tow vehicle or on the trailer tongue). Class B vans — a 4-bike rack at the rear is rarely structurally sound; consider a roof rack alternative for 2 bikes plus a front-of-vehicle hitch for 2 bikes. Truck campers typically use the truck's rear hitch with the camper installed, working capacity dependent on the specific truck and camper combination. PickRV's role for the family-bike-rack filter is verifying that the rig has the rated hitch, the specific compatible rack model, and the tray-style accommodation for kid wheels — search current inventory and filter for your dates.

Can a standard 2-bike hitch rack actually hold 4 mixed-size bikes?

No. Two-bike hitch racks have weight limits typically rated for 2 adult bikes (60 lb total or thereabouts). For 4 bikes you need a 4-bike rack rated for the higher load — Thule T2 Pro XTR with the 2-bike add-on (4-bike total, 60 lb per bike), Kuat NV 2.0 with add-on, or 1Up USA Heavy Duty Double with extensions. Mixed-wheel-size families specifically need a tray-style rack (not a hanging-arm rack) because the hanging-arm style requires the bike to have a straight top tube — kid bikes with sloped top tubes don't fit reliably.

What is the tongue-weight limit on a typical Class C hitch?

Most Class C motorhome rear hitches are rated Class III or Class IV, with tongue-weight capacity of 350-500 lb (Class III) or 500-600 lb (Class IV). A 4-bike rack itself weighs 50-70 lb; four bikes (2 adult at 30 lb each, 2 kid at 22 lb each) add roughly 104 lb. The total of about 175 lb sits well within Class III capacity for the bikes themselves. The constraint to watch is whether the rig is already towing another vehicle — most Class C rigs allow either a 4-bike rack OR a tow-behind vehicle but not both at the same hitch position. Confirm the rig's hitch specification before booking.

Which RV classes realistically work with a 4-bike rear rack?

Class C (28-32ft) — the most common fit; the rear hitch is purpose-built for this. Class A — rear hitch capacity varies by model; many high-end Class A rigs have a Class IV hitch sufficient for a 4-bike load. Travel trailers — bike rack on the rear of the trailer is possible but rare (most setups put the bike rack on the front of the tow vehicle or on the trailer tongue). Class B vans — a 4-bike rack at the rear is rarely structurally sound; consider a roof rack alternative for 2 bikes plus front-of-vehicle hitch for 2 bikes. Truck campers — typically use the truck's rear hitch with the camper installed, working capacity dependent on the specific truck.

Does PickRV have a 'family-bike-rack' filter?

Yes, available. The filter requires the host to have documented (1) a rear hitch rated for the bike-rack load, (2) a specific 4-bike-capable rack model already installed or available as an add-on, and (3) compatibility with kid bikes (tray-style rack, not hanging-arm). Search current family-bike-rack inventory and filter for your dates — the fleet grows as more hosts list.
